With a high-rigidity and high-precision structural design, the new generation of small vertical machine MV134 has been developed to meet the market demand for high processing efficiency and space-saving. This model adopts a three-axis high-precision linear slide rail design with a travel of 661/572/560mm. The machine has excellent performance and is easy to operate, offering more flexible space usage and higher production efficiency.
The MV2 series offers X-axis travel ranging from 1,270 mm to 2,040 mm and provides a variety of spindles to meet users' needs for processing multiple workpieces. The MV2 series is specially designed for high rigidity and high performance. To meet different processing requirements, we offer a wide range of specification options. In addition, the humanized control panel design enhances the convenience for customers.
The MV2 series offers X-axis travel ranging from 1,270 mm to 2,040 mm and provides a variety of spindles to meet users' needs for processing multiple workpieces. The MV2 series is specially designed for high rigidity and high performance. To meet different processing requirements, we offer a wide range of specification options. In addition, the humanized control panel design enhances the convenience for customers.
It comprehensively corresponds to difficult-to-cut materials and high-speed processing, demonstrating heavy cutting processing capabilities.It combines high speed, high torque, high removal rate efficiency and achieves stable high-precision processing. MV235P, with a large-diameter screw. The Y-axis four-line guide adopts an integrated base. The unique design of the column shoulder ensures that the load of the tool magazine does not cause deformation of the column. The six chip rolling screws inside the machine are combined with an external lifting chip conveyor design to achieve high-efficiency chip removal performance and can be optionally equipped with a filter bag machine.
The high-performance MF series multi-faceted / 5-axis vertical machining centers are suitable for small and medium-sized complex high-quality parts and are mainly used in aerospace, automotive, medical, and mold applications. From rough machining to fine machining, the MF series reduces the workpiece setup time and overall processing time, while improving processing quality and accuracy. The rotary worktable features a high-precision and high-rigidity structure with a strong clamping force. The independent slide mechanism is symmetrically designed with the rotary table, providing better stability. At the same time, it avoids the situation where a dual-axis rotating table is placed on the general vertical three-axis machine tool worktable, which would result in an excessively short Z-axis travel, and it also limits the defects of the processing objects for the customers.The design of the MF series is easy to operate, and even beginners without experience in multi-faceted / 5-axis processing can easily get started.
The MF700 adopts a moving column C-shaped structure with a design of three overlapping axes and two separated rotating axes. Compared with the "actual" strength of the same configuration on the market, it is further optimized by FEM to produce products that meet the rigidity requirements of Taiwan Quaser Maching Center. The three axes are isolated from the cutting zone to avoid cutting contamination and facilitate maintenance and repair.
The UX500 features high rigidity, high precision and high efficiency, and also has the advantages of simple operation and high floor efficiency. The symmetrical design ensures the rigidity of the machine tool, thereby achieving better damping performance and lower thermal displacement. Modular design allows for the expansion of machine configuration according to application requirements.
The UX630 has a B-axis +/- 120 degrees and an X-axis 900mm processing stroke, which conforms to the true diversity and flexibility of five-axis processing. The position of the centralized lubrication and air compressor distribution plate is convenient for the regular maintenance and upkeep of the machine
The door-type structure emphasizes outstanding performance in terms of precision, mechanical rigidity, and processing stability. The stable and pressure-resistant design ensures that the spindle torque, cutting capacity, and worktable load all achieve an unparalleled optimal overall combination rigidity. The exquisite shoveling technique enables the machine to have a more outstanding performance in heavy cutting and processing accuracy compared to other models of the same level.
The large Z-axis span of HX404 can handle higher workpieces, providing corresponding machine rigidity and enhancing processing stability. The Z-axis telescopic guard cover is W-shaped with a 90-degree bevel, which reduces chip accumulation. Combined with the in-machine flushing and internal and external chip removal systems, it can quickly remove the chips inside the machine. The short operating distance between the workpiece on and off the machine and the spindle enhances the proximity between the operator and the machine. HX404 occupies a small area and can effectively adapt to the space of the customer's factory building, achieving the best land utilization rate.
HX The series of horizontal machining centers have unparalleled production efficiency and extremely high precision, due to their minimal non cutting time and stable machine structure. These concise and compact high-speed machining centers can provide our customers with the best productivity for small and medium-sized parts. Paired with advanced factory automation equipment, it can provide higher productivity.
The rigidity of the T-shaped base structure surpasses that of the three-piece structure design of the same class of models. It also provides a large shockproof damping and reduces deformation, making the machine not only durable but also with excellent performance.
The dynamic column structure design can achieve extremely high dynamic and static accuracy.
The integrated workbench design achieves the optimal rigidity and clamping force.

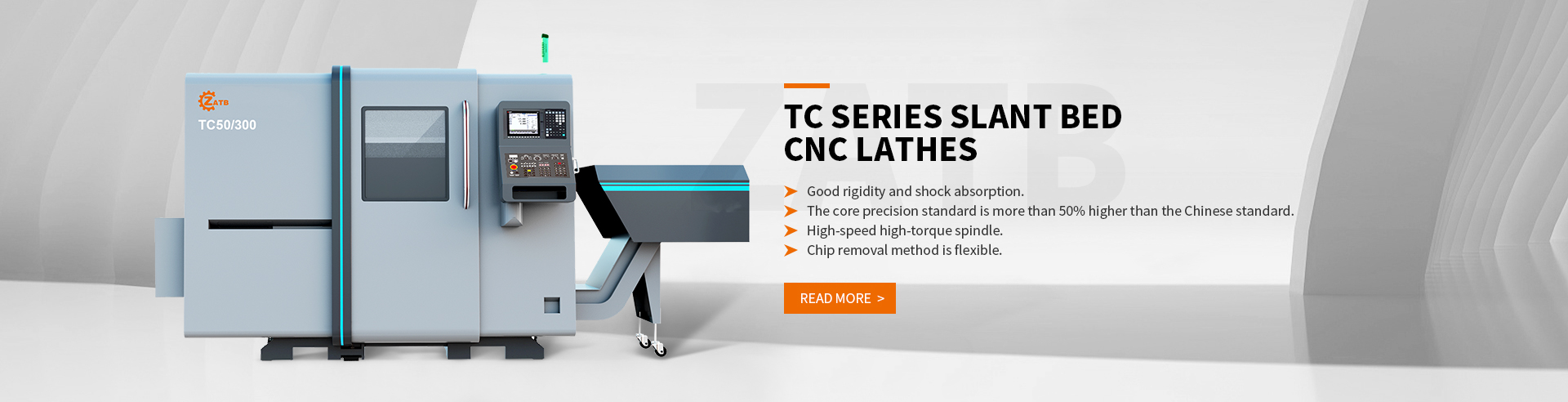

The TC series slant-bed CNC lathes, produced by our company, are high-precision two-axis linkage and five-axis four-linkage semi-closed loop CNC lathes and turning-milling machines. The machine castings are of high-quality (HT300), with 30° or 45° inclined bed design and integrated casting, featuring high rigidity. The saddle and tailstock sliding bodies are both linear guides, with low friction coefficient and good dynamic characteristics. The control systems adopt Mitsubishi M80LA, FANUC, Siemens, Guangzhou CNC, etc. and AC servo drives, which are convenient to operate and reliable in operation. The spindle is equipped with a main motor of high power, high torque and high rotational speed. This machine is capable of processing outer circle, end face, slot, step, conical surface, inner hole, inner hole slot, spherical surface, thread, drilling, milling, rigid tapping, eccentric hole, etc. It can complete multiple processing procedures with one clamping, significantly enhancing the processing efficiency. It can meet the needs of high-efficiency batch processing of small and medium-sized complex and precise parts in various industries such as automobiles, electronics, home appliances, aerospace, molds, instruments and meters, petrochemical engineering, and construction machinery.
● Good rigidity and shock absorption.
● The core precision standard is more than 50% higher than the Chinese standard.
● High-speed high-torque spindle.
● Chip removal method is flexible.
The +VMC series vertical machining centers boast a distinctive high-speed linear guide rail design. It is furnished with an automatic tool changer (ATC), an automatic lubrication system, a cooling system, an automatic chip removal device, a portable manual operation device (MPG), and an integrated protective shield. Through a single clamping of parts, multiple processing procedures such as milling, boring, drilling, reaming, tapping and threading can be accomplished automatically. This fully embodies the merits of strong efficiency, high reliability, high automation, simplicity and convenience in operation, as well as a high degree of mechanical and electrical integration.It is extensively applicable to the processing of box parts, shell parts, valve body parts, disc parts, plate parts, irregular parts and precision parts in industries like automobiles, military industry, molds, communications, medical care, instruments and meters.
◆ High-rigidity box-type structured hard cast iron lathe bed
◆ Large-span herringbone-shaped columns
◆ Large-torque gear main shaft
◆ Oil cooling of the spindle
The CK series flat-bed CNC lathes are CNC horizontal lathes controlled by two coordinates, namely the longitudinal (Z) and the transverse (X).It is capable of conducting turning operations for metric straight threads, end face threads, imperial straight threads, and taper threads. These lathes can automatically accomplish the cutting processes of inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end faces, grooving, and chamfering for various shaft and disc components. It can satisfy the turning processing requirements of complex and high-precision parts in fields such as plumbing equipment, valves, electrical appliances, instruments, automobiles, aerospace, and energy.
◆ High-rigidity and precise compound bearing transmission
◆ The rotational speed of the spindle is adjustable in three gears
◆ Hard Guide Rails
◆ Through a larger diameter of the bar stock
The C series conventional lathes can turn the outer circle, inner hole and face of the parts. It can drill holes, ream holes and pull oil grooves. Various metric, imperial, module and diametral pitch threads can be processed. If users place special orders, circular pitch threads can also be processed. Materials such as steel, cast iron, non-ferrous metals and non-metals can be machined. This lathe is particularly applicable to processing workshops with small batch production and mechanical repair workshops, etc. The dimensional accuracy of the machined parts can reach IT7 grade, and the surface roughness can reach 1.6 grade.
◆ High rigidity and strong power
◆ The integral bed
◆ The guide rails undergo precise grinding to guarantee accuracy.
◆ High-frequency quenched guide rails
The characteristics of CNC machine tools include high flexibility, high processing accuracy, high degree of automation, high productivity, and improved working conditions.
