MV134/MV184

With a high-rigidity and high-precision structural design, the new generation of small vertical machine MV134 has been developed to meet the market demand for high processing efficiency and space-saving. This model adopts a three-axis high-precision linear slide rail design with a travel of 661/572/560mm. The machine has excellent performance and is easy to operate, offering more flexible space usage and higher production efficiency.

Product Details

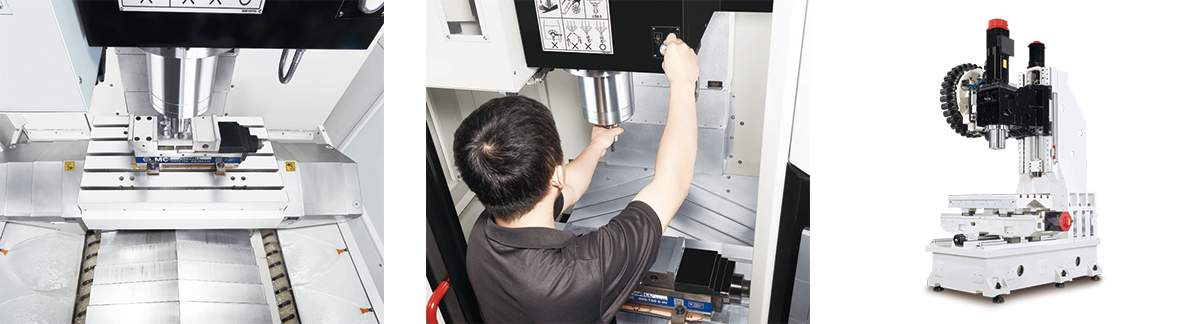

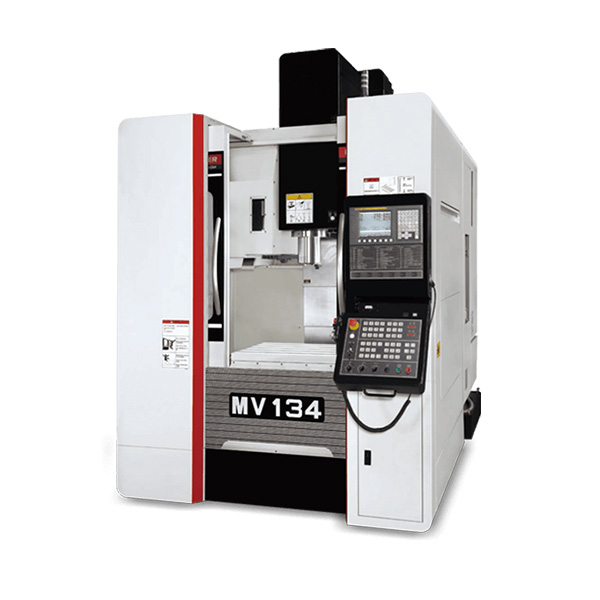

MV134
With a high-rigidity and high-precision structural design, the new generation of small vertical machine MV134 has been developed to meet the market demand for high processing efficiency and space-saving. This model adopts a three-axis high-precision linear slide rail design with a travel of 661/572/560mm. The machine has excellent performance and is easy to operate, offering more flexible space usage and higher production efficiency.

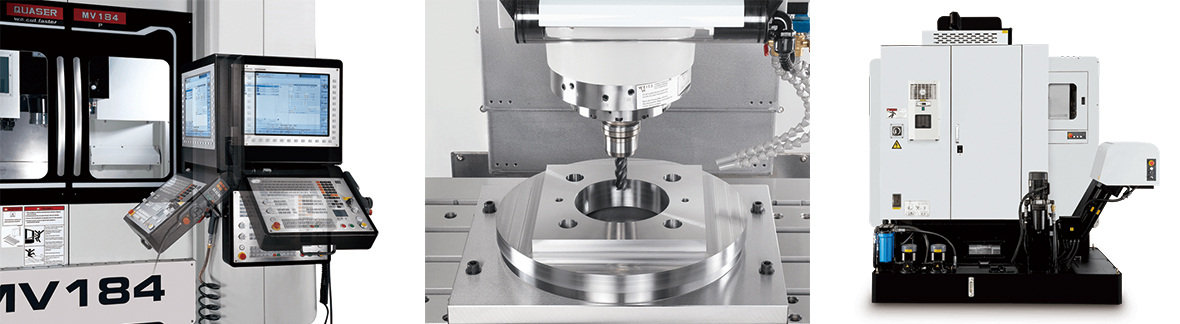

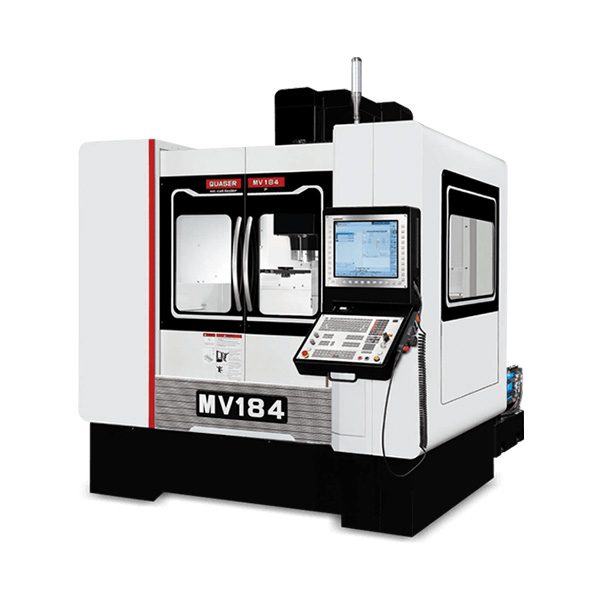

MV184
Based on the successful sales experience of the MV1, the new MV184 series features higher reliability and handling performance. The design concept of the new MV184 series combines advanced technology, performance and accumulated experience in various processing applications. Design and manufacture machines using the latest 3D digital technology. Easy maintenance reduces downtime. The MV184 series has always demonstrated outstanding processing performance.

Technical Data	MV134	MV184
Work Range
Table Size	940 x 550 mm	1,200 x 600 mm
Travel X	661 mm	1,020 mm
Travel Y	572 mm	610 mm
Travel Z	560 mm	610 mm
Table Load Capacity	500 kg	500 kg
Main Spindle
Spindle Taper	40 taper	40 taper
Max. Spindle Speed	6K ~ 20K	9K ~ 20K
Tool Changer
Magazine Positions	30 (std.)	30 (std.)
Max. Tool Diameter	76.2 mm	125 mm
Max. Tool Dia. Due to Neighbor Pots Are Empty	150 mm	125 mm
Max. Tool Length	300 mm	280 mm

技術資料	MV134	MV184
Work Range
Table Size	940 x 550 mm	1,200 x 600 mm
Travel X	661 mm	1,020 mm
Travel Y	572 mm	610 mm
Travel Z	560 mm	610 mm
Table Load Capacity	500 kg	500 kg
Main Spindle
Spindle Taper	40 taper	40 taper
Max. Spindle Speed	6K ~ 20K	9K ~ 20K
Tool Changer
Magazine Positions	30 (std.)	30 (std.)
Max. Tool Diameter	76.2 mm	125 mm
Max. Tool Dia. Due to Neighbor Pots Are Empty	150 mm	125 mm
Max. Tool Length	300 mm	280 mm

Applications: Automotive, mold, electronics, aerospace, defense, medical, energy and other industries.
