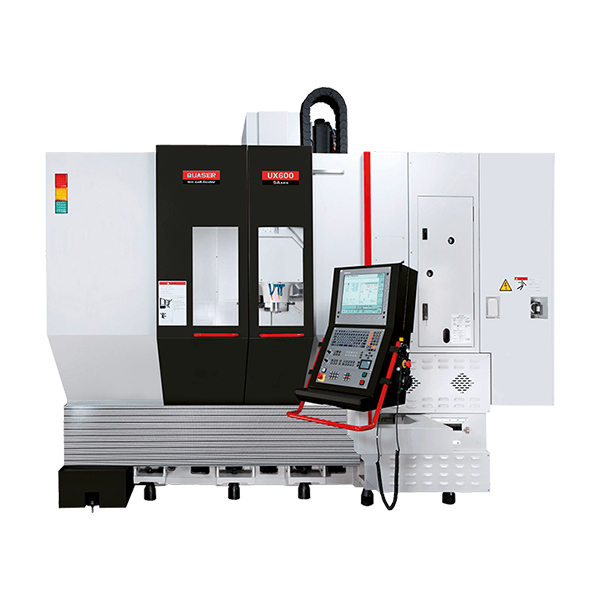

UX600/UX800

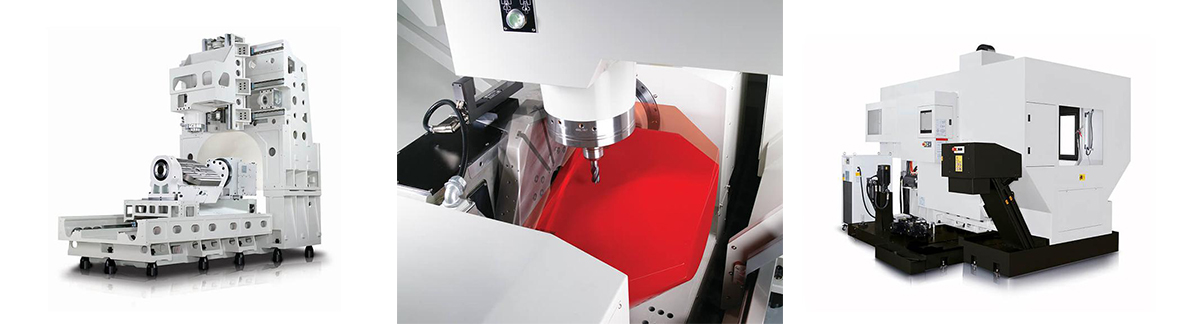

The door-type structure emphasizes outstanding performance in terms of precision, mechanical rigidity, and processing stability. The stable and pressure-resistant design ensures that the spindle torque, cutting capacity, and worktable load all achieve an unparalleled optimal overall combination rigidity. The exquisite shoveling technique enables the machine to have a more outstanding performance in heavy cutting and processing accuracy compared to other models of the same level.

Product Details

Technical Data	UX600	UX800
Work Range
Workbench size	Ø500 mm	Ø630 mm
Maximum workpiece turn diameter	Ø630 mm	Ø800 mm
Maximum workpiece size	Ø630 x 425 mm	Ø800 x 470 mm
X-axis travel	885 mm	995 mm
Y-axis travel	800 mm	800 mm
Z-axis travel	500 mm	500mm
Table load	300 kg	850kg
Main Spindle
Spindle type	40 taper	40 taper
Maximum spindle speed	12K	15K
Automatic tool changing system
Tool magazine capacity	30 (std.)	48(std.)
Maximum blade diameter	76.2 mm	76.2 mm
There is no maximum diameter of adjacent knives	125 mm	125 mm
Maximum tool length	280 mm	280 mm

Technical Data	UX600	UX800
Work Range
Workbench size	Ø500 mm	Ø630 mm
Maximum workpiece turn diameter	Ø630 mm	Ø800 mm
Maximum workpiece size	Ø630 x 425 mm	Ø800 x 470 mm
X-axis travel	885 mm	995 mm
Y-axis travel	800 mm	800 mm
Z-axis travel	500 mm	500mm
Table load	300 kg	850kg
Main Spindle
Spindle type	40 taper	40 taper
Maximum spindle speed	12K	15K
Automatic tool changing system
Tool magazine capacity	30 (std.)	48(std.)
Maximum blade diameter	76.2 mm	76.2 mm
There is no maximum diameter of adjacent knives	125 mm	125 mm
Maximum tool length	280 mm	280 mm

Application: Processing of parts with complex curved surfaces. The requirements of the automated automotive industry and high-precision complex workpieces. Automobile: Control arm, bracket. Aerospace: Impellers, turbine blades. Medical: Titanium artificial knee joints, artificial teeth. Molds: Tool steel plastic molds, tire molds.
