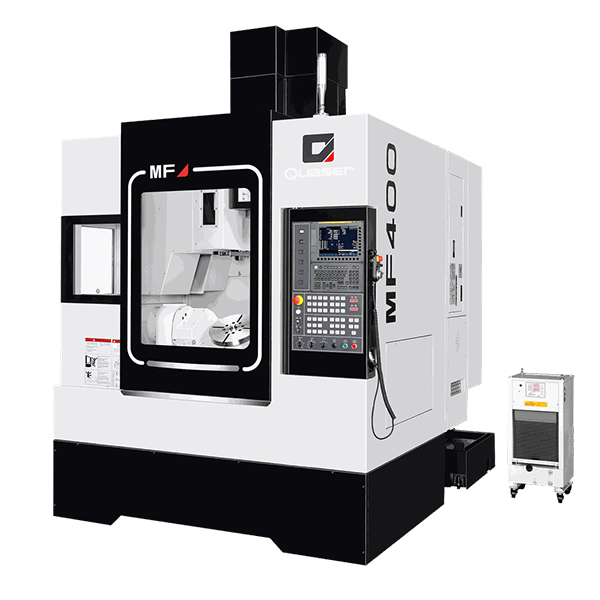

MF400/MF500

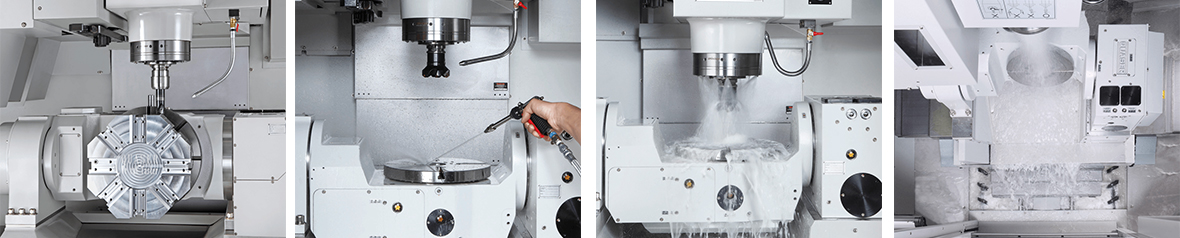

The high-performance MF series multi-faceted / 5-axis vertical machining centers are suitable for small and medium-sized complex high-quality parts and are mainly used in aerospace, automotive, medical, and mold applications. From rough machining to fine machining, the MF series reduces the workpiece setup time and overall processing time, while improving processing quality and accuracy. The rotary worktable features a high-precision and high-rigidity structure with a strong clamping force. The independent slide mechanism is symmetrically designed with the rotary table, providing better stability. At the same time, it avoids the situation where a dual-axis rotating table is placed on the general vertical three-axis machine tool worktable, which would result in an excessively short Z-axis travel, and it also limits the defects of the processing objects for the customers.The design of the MF series is easy to operate, and even beginners without experience in multi-faceted / 5-axis processing can easily get started.

Product Details

Technical Data	MF400	MF500
Work Range
Workbench size	Ø320	Ø410
Maximum workpiece turn diameter	Ø400	Ø500
Maximum workpiece size	Ø400 x 300 mm	Ø500 x 300 mm
X-axis travel	410 mm	550 mm
Y-axis travel	610 mm	630 mm
Z-axis travel	510 mm	610mm
Table load	100 kg	200 kg
Main Spindle
Spindle type	40 taper	40 taper
Maximum spindle speed	12K ~ 20K	12K ~ 20K
Automatic tool changing system
Tool magazine capacity	30 (std.)	30 (std.)
Maximum blade diameter	76.2 mm	76.2 mm
There is no maximum diameter of adjacent knives	125 mm	125 mm
Maximum tool length	280 mm	280 mm

Technical Data	MF400	MF500
Work Range
Workbench size	Ø320	Ø410
Maximum workpiece turn diameter	Ø400	Ø500
Maximum workpiece size	Ø400 x 300 mm	Ø500 x 300 mm
X-axis travel	410 mm	550 mm
Y-axis travel	610 mm	630 mm
Z-axis travel	510 mm	610mm
Table load	100 kg	200 kg
Main Spindle
Spindle type	40 taper	40 taper
Maximum spindle speed	12K ~ 20K	12K ~ 20K
Automatic tool changing system
Tool magazine capacity	30 (std.)	30 (std.)
Maximum blade diameter	76.2 mm	76.2 mm
There is no maximum diameter of adjacent knives	125 mm	125 mm
Maximum tool length	280 mm	280 mm

Applications: Automotive, aerospace, medical, mold and other industries.
