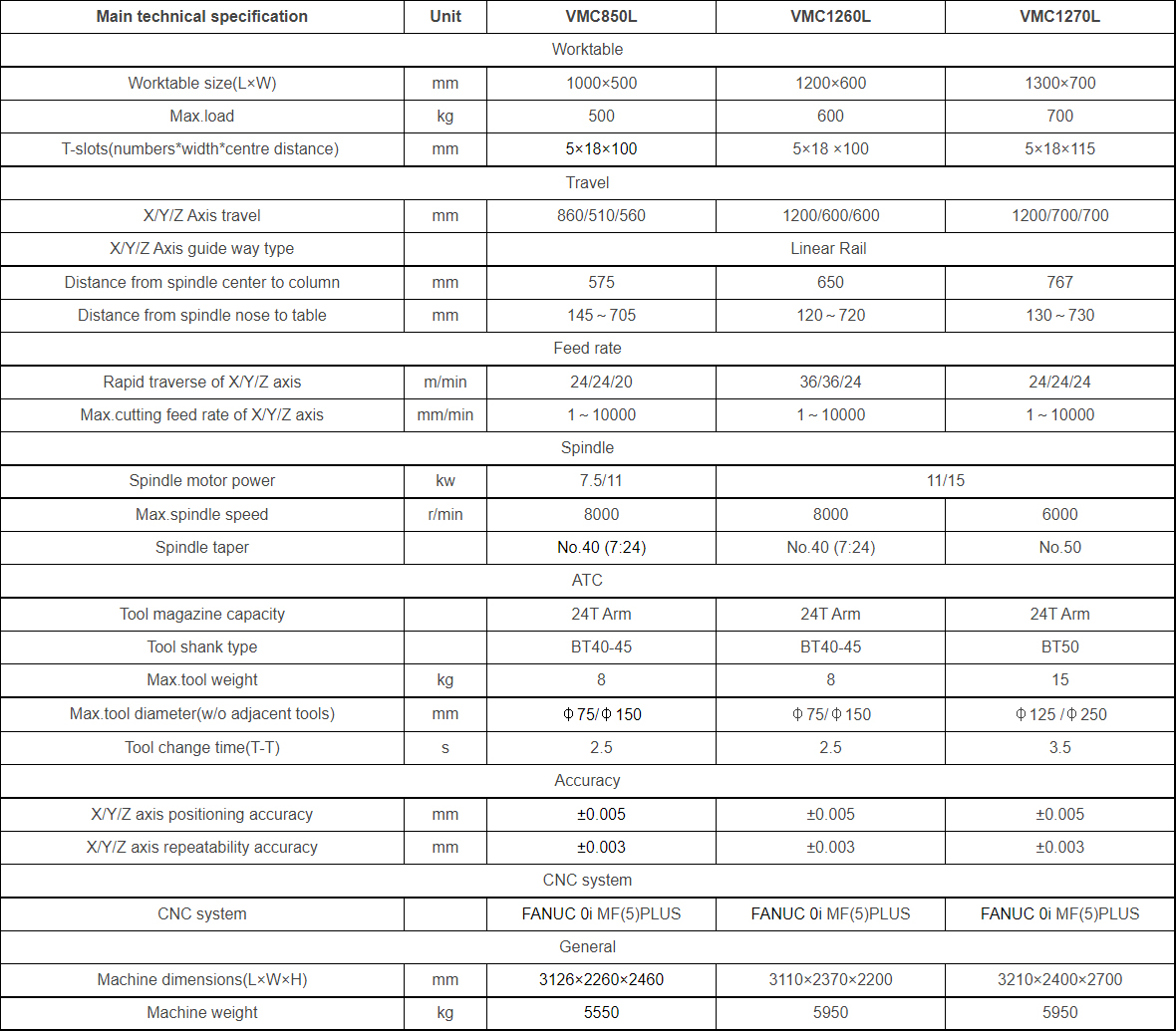

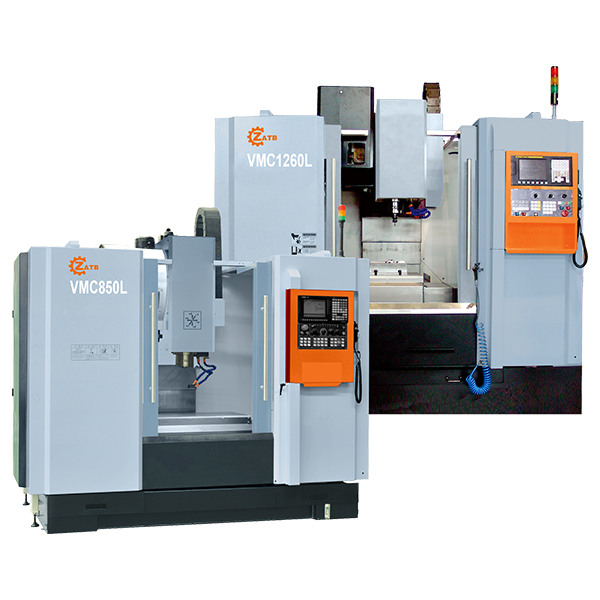

Main technical specification |
Unit |
VMC850L |
VMC1260L |
VMC1270L |
|
Worktable |
||||
|
Worktable size(L×W) |
mm |
1000×500 |
1200×600 |
1300×700 |
|
Max.load |
kg |
500 |
600 |
700 |
|
T-slots(numbers*width*centre distance) |
mm |
5×18×100 |
5×18 ×100 |
5×18×115 |
|
Travel |
||||
|
X/Y/Z Axis travel |
mm |
860/510/560 |
1200/600/600 |
1200/700/700 |
|
X/Y/Z Axis guide way type |
|
Linear Rail |
||
|
Distance from spindle center to column |
mm |
575 |
650 |
767 |
|
Distance from spindle nose to table |
mm |
145～705 |
120～720 |
130～730 |
|
Feed rate |
||||
|
Rapid traverse of X/Y/Z axis |
m/min |
24/24/20 |
36/36/24 |
24/24/24 |
|
Max.cutting feed rate of X/Y/Z axis |
mm/min |
1～10000 |
1～10000 |
1～10000 |
|
Spindle |
||||
|
Spindle motor power |
kw |
7.5/11 |
11/15 |
|
|
Max.spindle speed |
r/min |
8000 |
8000 |
6000 |
|
Spindle taper |
|
No.40 (7:24) |
No.40 (7:24) |
No.50 |
|
ATC |
||||
|
Tool magazine capacity |
|
24T Arm |
24T Arm |
24T Arm |
|
Tool shank type |
|
BT40-45 |
BT40-45 |
BT50 |
|
Max.tool weight |
kg |
8 |
8 |
15 |
|
Max.tool diameter(w/o adjacent tools) |
mm |
φ75/φ150 |
φ75/φ150 |
φ125 /φ250 |
|
Tool change time(T-T) |
s |
2.5 |
2.5 |
3.5 |
|
Accuracy |
||||
|
X/Y/Z axis positioning accuracy |
mm |
±0.005 |
±0.005 |
±0.005 |
|
X/Y/Z axis repeatability accuracy |
mm |
±0.003 |
±0.003 |
±0.003 |
|
CNC system |
||||
|
CNC system |
|
FANUC 0i MF(5)PLUS |
FANUC 0i MF(5)PLUS |
FANUC 0i MF(5)PLUS |
|
General |
||||
|
Machine dimensions(L×W×H) |
mm |
3126×2260×2460 |
3110×2370×2200 |
3210×2400×2700 |
|
Machine weight |
kg |
5550 |
5950 |
5950 |
● FANUC CNC system
● Integral sliding door guard
● 24-way disc-type tool changer
● Belt drive shaft
● Automatic lubrication system
● Spindle air curtain dust-proof system
● Simple oil-water separator
● Electrical cabinet heat exchanger
● Warning light
● Workpiece cooling system
● Handheld blow-off air gun
● Flexible tapping
● Helical chip conveyor and trolley
● Siemens CNC system
● Guangzhou CNC system
● Integral external sliding door guard
● High-volume flushing device
● Electrical cabinet air conditioner
● Fourth axis CNC turntable
● Central water outlet main shaft and
high-pressure cooling system
● Tool inspection device
● M30 Automatic power-off device
Persist with the policy of continual product improvement, we reserve the right to amend the specifications in this catalog without prior notice.
